| Model | AWR26 |
| X axis travel | 400mm |
| Z axis travel | 500mm |

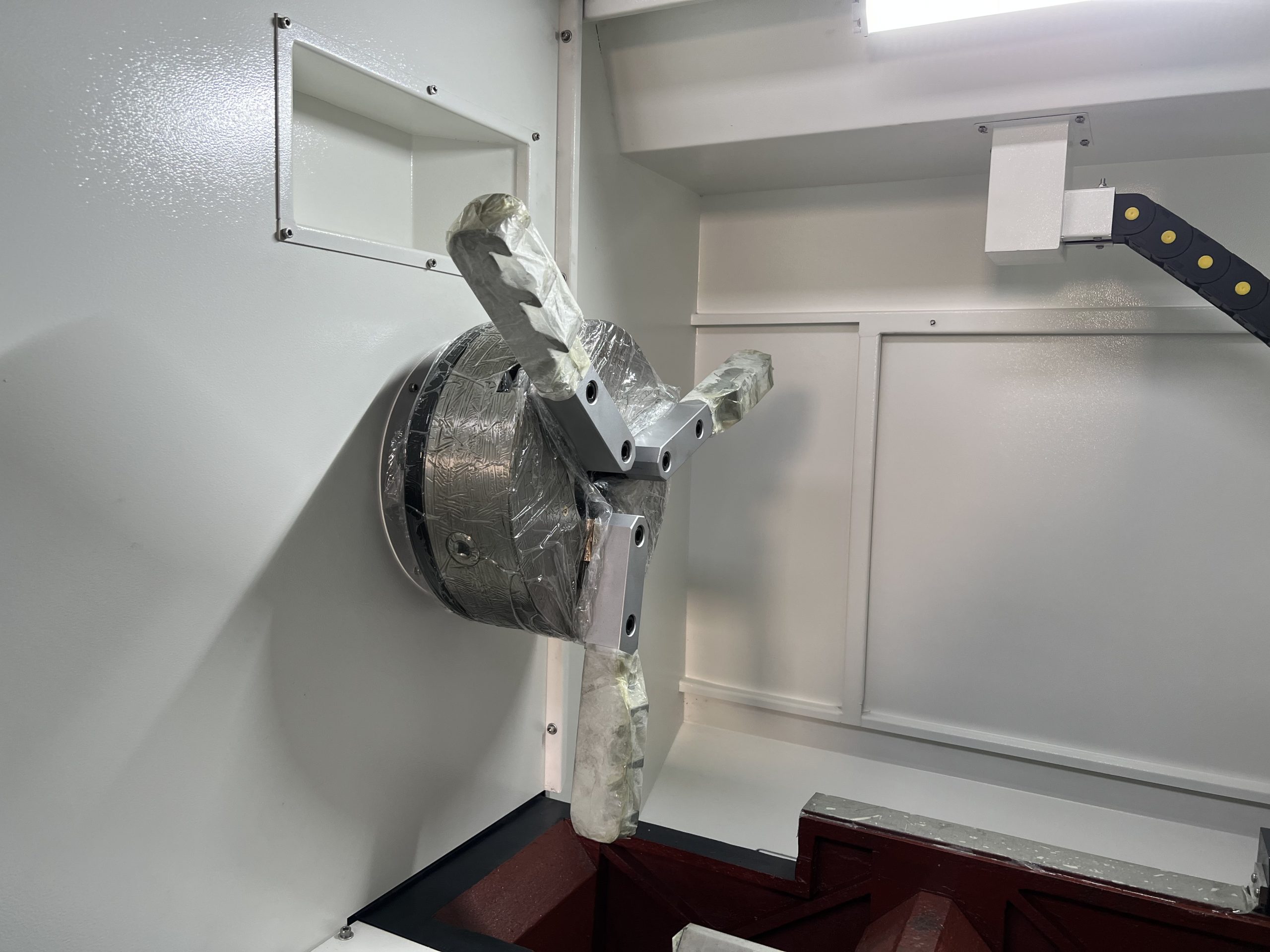

| Jaw chuck | 12” with 3-step soft jaw |
| Alloy wheel gripping Range | 14’’~26’’ |
| Max.turning diameter | 820mm(32”) |
| Spindle motor | 5.5kw |
| X axis rapid traverse | 3m/min |
| Z axis rapid traverse | 3m/min |
| Cutting feed rate range | 0~200 m/min |
| Position accuracy | X:0.01mm; Z:0.01mm |
| Machine Size (LxWxH ) | 2000 x 1530 x 1630mm |
| Packing size: (LxWxH ) | 2100 x 1730 x 1900 mm |
| N.W. / G.W | 1550kg / 1650kg |
Standard Accessory
