CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration

CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration

The AWR28SL CNC wheel repair lathe offers precision and efficiency, making it the ideal solution for repairing and restoring wheels with ease.
Contact now Send E-mail
  • CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration
  • CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration
  • CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration
  • CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration
  • CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration
  • CNC Wheel Repair Lathe AWR28SL – High-Quality Solution for Wheel Restoration

PRODUCT DESCRIPTION


FEATURE:

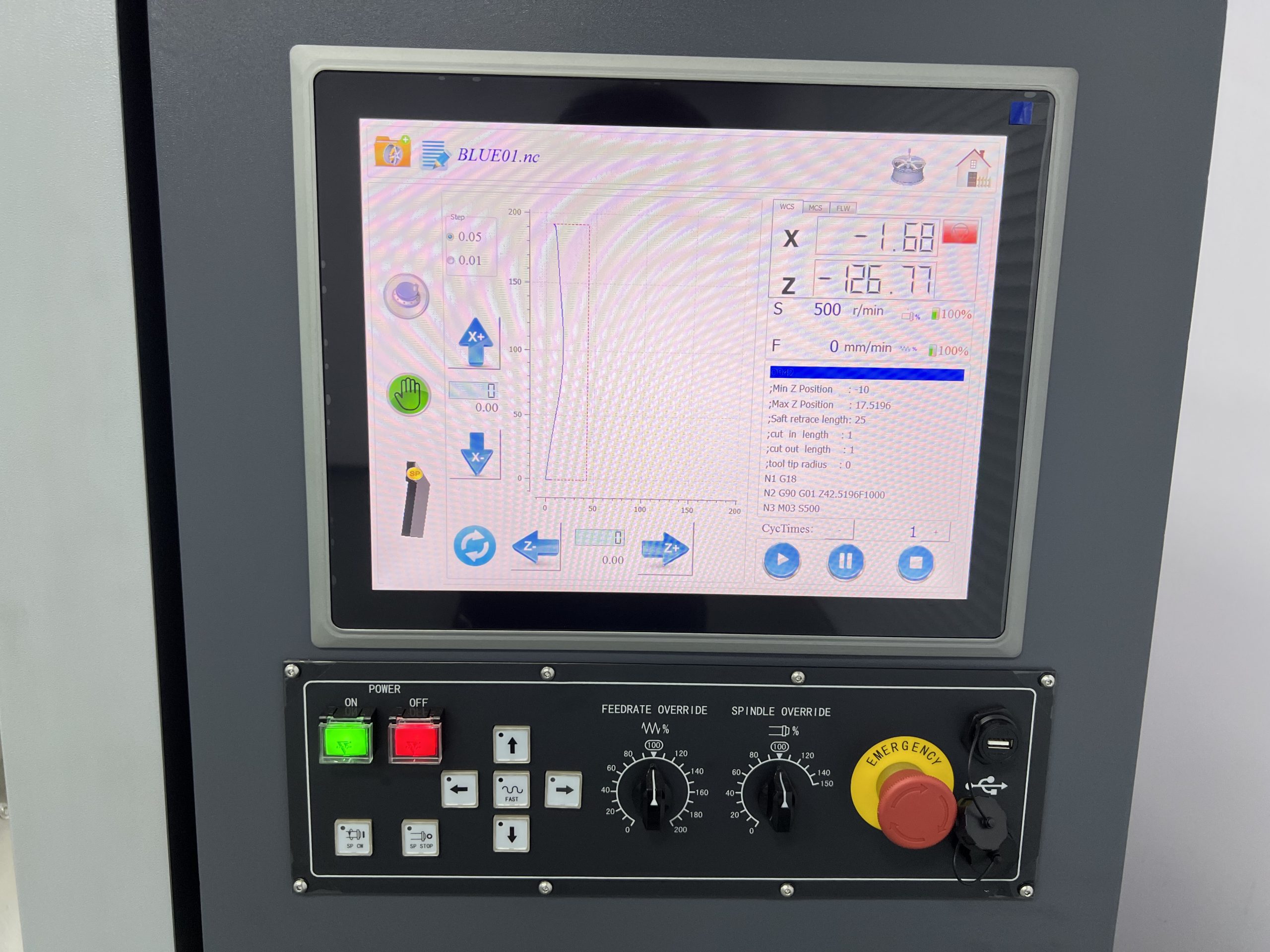

  1. 17” Multi-Touch screen PC with user-friendly auto wheel repair system
  2. Wheelcutting from 12’ to 28’’
  3. 45 degree slant bed with good cutting forth.
  4. Linerguide way keep high precision and longer machine life.
Model AWR28SL
X axis travel     520mm
Z axis travel 530mm
Jaw chuck   12.5” with 3 step soft jaw
Alloy wheel gripping Range 12’’~28’’
Spindle motor  5.5kw
Spindle speed 40~1200 r/min
X axis rapid traverse 10m/min
Z axis rapid traverse 12m/min
Cutting feed rate range 0.05~200 mm/min
Position accuracy X:0.01mm; Z:0.01mm
Re-position accuracy X:0.007mm; Z:0.008mm
Machine Size (LxWxH ) 2220 x 1556 x 1523mm
Packing size: (LxWxH ) 2200 x 1500 x 1750 mm
N.W. / G.W 2400kg / 2500kg
