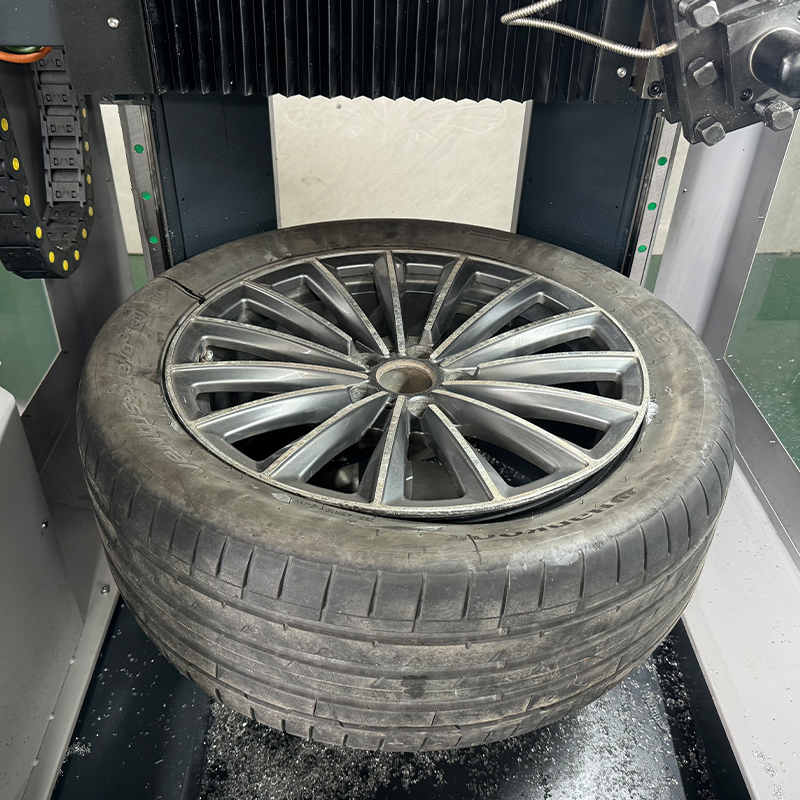

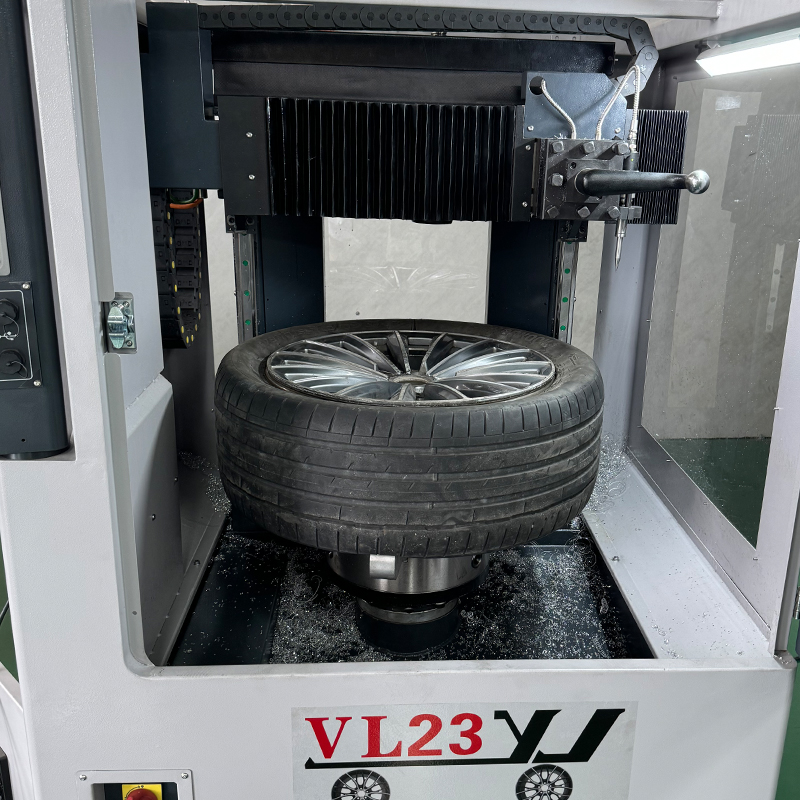

It is specially designed for the wheel mobile work because of its tiny apperarance and light weight .
it can be put in a warehouse or equipped on a van.
you can cut the rim with tyre or not.
| X Axis travel | 360mm |
| Z axis travel | 390mm |
| Jaw Chuck | 12’’ 3 jaw chuck |
| Wheel size | 12’’-24’’ without tire or 12’’-20’’ with tire |
| Main motor power | 5.5KW |
| Spindle Speed | 0-750RPM |
| Machine Size (L-W-H) | 1110-970-1530mm |
| Packing Size(L-W-H) | 1310-1200-1800mm |
| N.W./G.W | 490KG /590KG |
| Voltage | as requirement |
| Warranty | 1 year |
FEATURE:
15’’ Touchscreen PC
Automatic digital software
3 soft jaw chuck
HIWIN Liner-Guide Way
Manual 4 way tool post
Automatic oil lubrication.
Full closed protected guard door
Working Light
Tool and tool box
