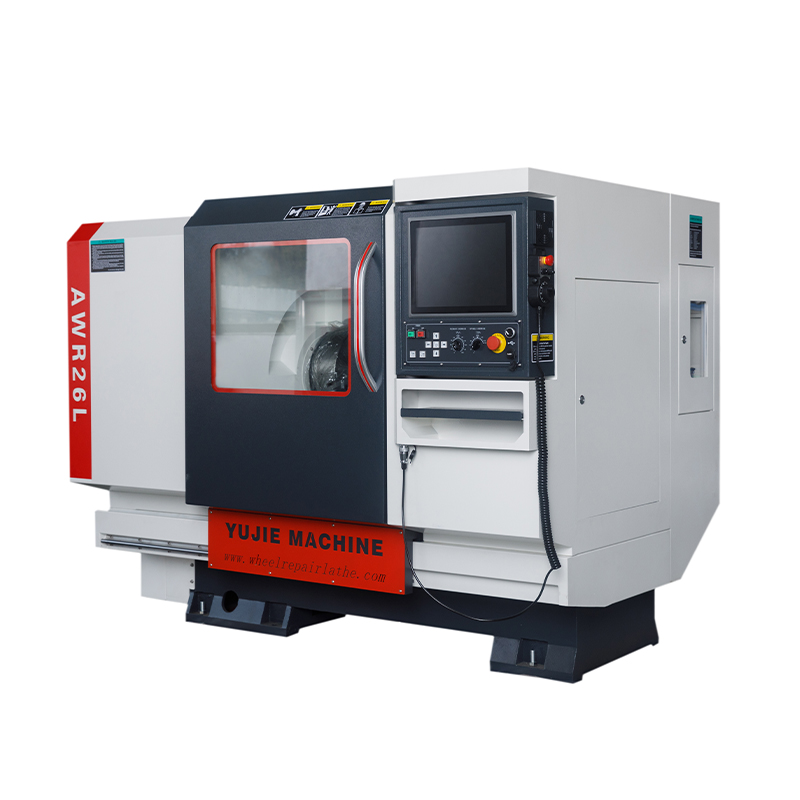

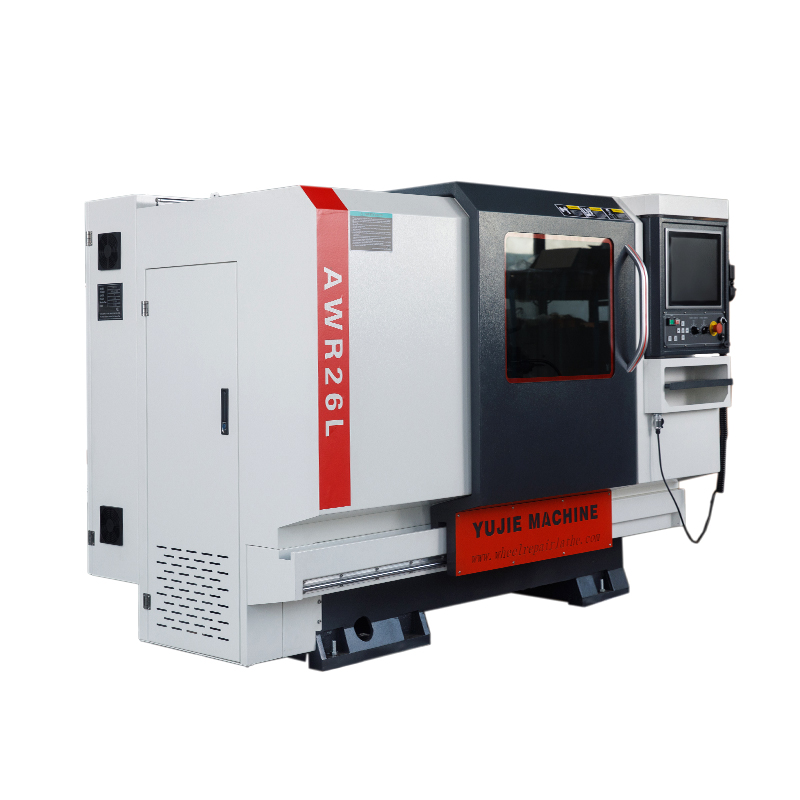

AWR26L higher accuracy horizontal rim refinish machine - High-performance lathe for precision wheel restoration. Restore wheels to perfection with our advanced CNC technology.
FEATURES
| Model | AWR26L |
| X axis travel | 410mm |
| Z axis travel | 540mm |
| Jaw chuck | 3 jaw chuck |
| Wheel size | 14’’~26’’or12’’~24’’ |
| Alloy Wheel Gripping Outside Diameter Range | 28’’ |
| Main motor power | 5.5kw |
| Spindle Speed | 0-750 r/min |
| Max. Measured depth of probing | 110mm |
| Position accuracy | X:0.01mm; Z:0.01mm |
| Re-position accuracy | X:0.007mm; Z:0.008mm |
| Cutting feed | 0.005-200mm/r |
| Machine Size (LxWxH ) | 2010 x 1350 x 1530mm |
| Packing size: (LxWxH ) | 2180 x 1500 x 1870 mm |
| N.W. / G.W | 1500kg / 1600kg |
| Voltage | As requirement |
| Warranty | 2 years |
| After-sale service | All machine life |
